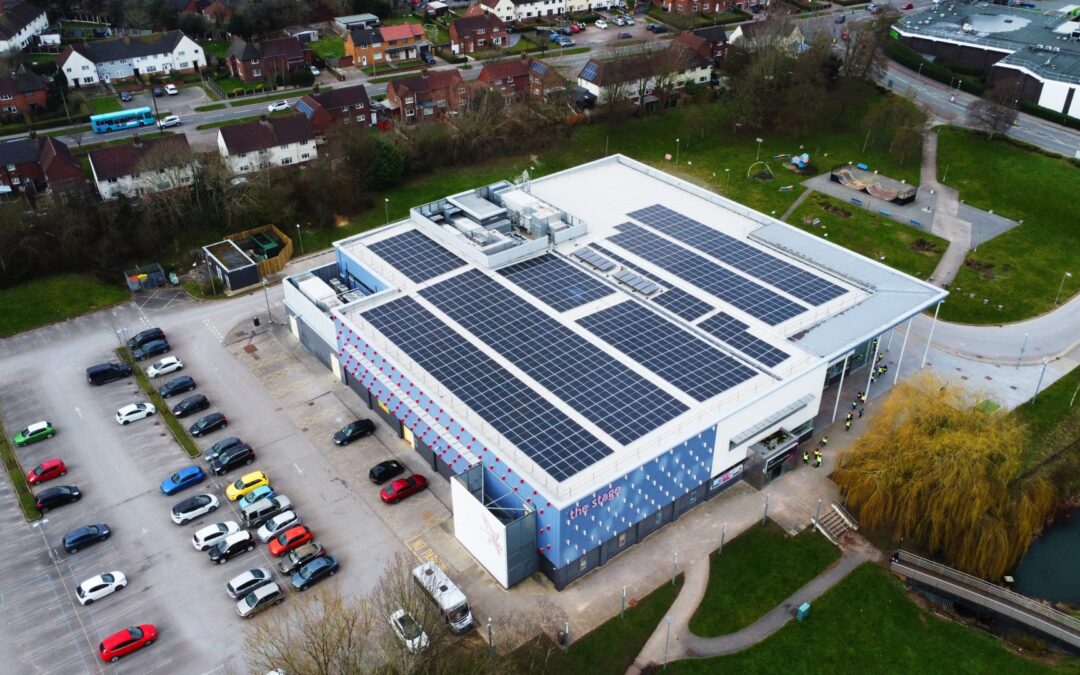

Winsford Lifestyle Centre 270.12 kWp Solar PV System

Winsford Lifestyle Centre Solar PV System

Cheshire West and Chester Council have seen a significant boost towards its ambitious target date of 2030 to achieve carbon neutrality for the Council’s own emissions, as well as a carbon neutral borough by 2045. This is due to the recent efforts of our team to complete the installations of the solar PV systems in Cheshire.

Last year we completed the 270.12 kWp solar PV system for Winsford Lifestyle Centre, one of the many completed for Brio Leisure in the last year. The system consisted of 607 x Longi Solar, LR4-72HPH-445M solar panels which were installed on an SFLEX mounting system with half the amount of P950 optimizers to connect to two solar panels each. The last parts to complete the system were the 6 x SolarEdge 30K inverters which were installed inside the building and wired up to the PV arrays on the roof.

The 270.12 kWp system is estimated to generate 211.88 MWh of energy and save around 50 tonnes of carbon emissions every year, which is the equivalent to 2,267 trees being planted. The pie charts below are showing the system production and the consumption of the solar PV system at Winsford Lifestyle Centre. so for example the blue section on the left shows how much energy they use roughly every year and the dark green shows how much energy the PV system produces so the light green shows how much energy will be leftover and be exported to the grid.

Installed DC Power (kWp)

Max Achieved AC Power (kW)

Annual Energy Production (MWh)

CO2 Emission Saved (Tonnes)

Equivalent Trees Planted

We owe a massive thanks to Qwest Services for their help in this project. They manage the Council’s Capital Works repair and maintenance schedules and submitted 14 buildings in the application for funding. These buildings were identified as being the most appropriate for the installation of Air Source Heat Pumps, Hybrid Heating Systems, Solar PV (Photovoltaic), also known as a solar electric system, and/or light-emitting diode (LED) lighting.

Winsford Lifestyle Centre is the perfect place for the whole family to get active!

2 swimming pools cater for swimming lessons and casual swimming sessions alike, while the gym and fitness class programme are there for those that enjoy exercising out of the water! Winsford Lifestyle Centre also has a full health suite including steam room, sauna and jacuzzi – great to use after a tough workout!

Gallery

Winsford Leisure Centre Solar Panel System Photo 2

Winsford Leisure Centre Solar Panel System Photo 5

Winsford Leisure Centre Solar Panel System Photo 4

Winsford Leisure Centre Solar Panel System Photo 1

Winsford Leisure Centre Solar Panel System Photo 6

Winsford Leisure Centre Solar Panel System Photo 8

Winsford Leisure Centre Solar Panel System Photo 7

Technology

Solar Panel

Longi Solar LR4-72HPH x 607

Warranty

12 Year Warranty for Materials and Processing

25 Year Warranty for Extra Linear Power Output

Efficiency

20.5%

Dimensions

2094 x 1038 x 35mm

Weight

23.5 kg

Inverter

Solaredge 30k x 6

Optimiser

P950 x 340

Make Enquiry

Please fill in your details below and we will be in touch as soon as possible

Name

E-Mail Address

Phonenumber

Consumption Profile

Address

Town

Postcode

Consumption

How Soon Do You Want Your Installation?

Enquiry

Agreement Agreement By checking this box, I agree to allow PV Fit Ltd t/a Genfit to use the given information only for the purpose of complying with their terms and Privacy Policy

7 + 12 =

Get Quote

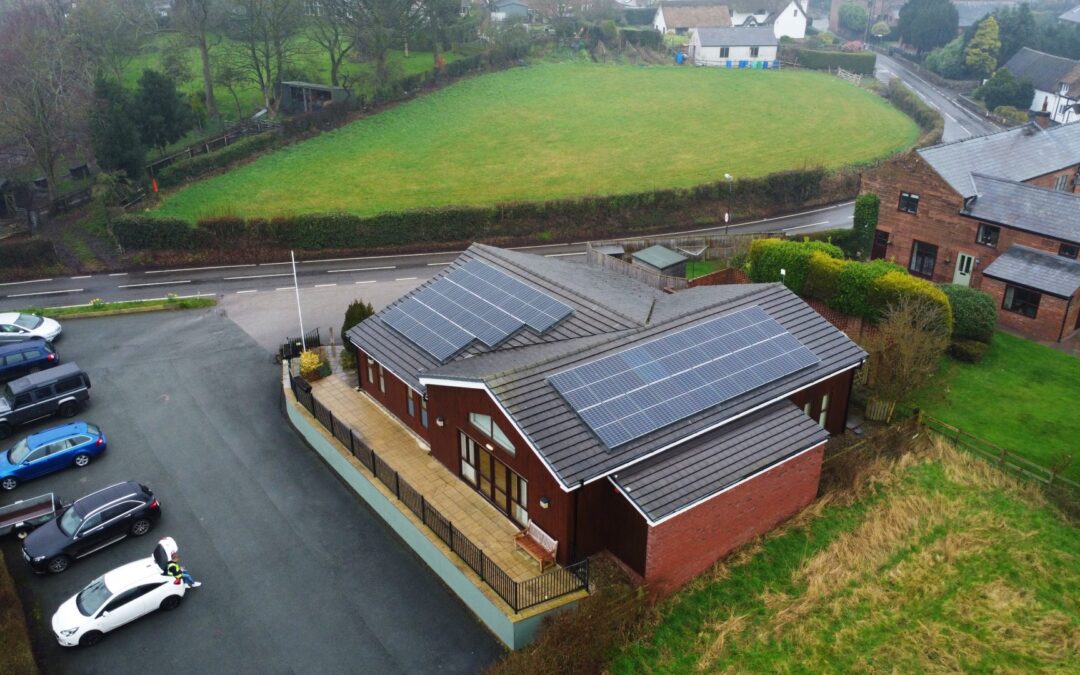

Jessie Hughes Village Hall 14.25 kWp Solar PV Installation in Tarporley

Jessie Hughes Village Hall Solar PV Installation in Tarporley

This 14.25 kWp solar PV system was installed back in February to help the community of Jessie Hughes Village Hall save money on the electricity bills for running the facility. The system included thirty eight Longi Solar, LR4-60HPH-375M solar panels split across 2 different sides of the roof as well as another thirty-eight S440 optimizers connecting to one solar panel each and one SolarEdge 10K inverter which was installed inside the storage room.

Installed DC Power (kWp)

Max Achieved AC Power (kW)

Annual Energy Production (MWh)

CO2 Emission Saved (Tonnes)

Equivalent Trees Planted

The Jessie Hughes Village Hall

Following the demolition of the old hall the new Jessie Hughes Village Hall was opened last year. The origins of the old hall go back to 1925 when Jessie Hughes who was the wife of the rector of Tarporley and the first President of the Eaton WI joined a committee to raise funds for a village meeting place. Mrs Hughes turned out to be the driving force behind the fundraising and when the hall was being built in 1926 she was asked to lay the foundation stone. This she did with a silver trowel carrying a suitable inscription. This hall was called the Eaton Village Institute but, when Mrs Hughes died, it was renamed to The Jessie Hughes Institute.

Gallery

Technology

Solar Panel

Longi Solar LR4-60HPH x 38

Warranty

12 Years Product Warranty

Efficiency

20.3 – 20.9%

Dimensions

1755 x 1038 x 35mm

Weight

19.5 kg

Inverter

Solaredge 10k x 1

Optimiser

S440 x 38

Make Enquiry

Please fill in your details below and we will be in touch as soon as possible

Name

E-Mail Address

Phonenumber

Consumption Profile

Address

Town

Postcode

Consumption

How Soon Do You Want Your Installation?

Enquiry

Agreement Agreement By checking this box, I agree to allow PV Fit Ltd t/a Genfit to use the given information only for the purpose of complying with their terms and Privacy Policy

15 + 4 =

Get Quote

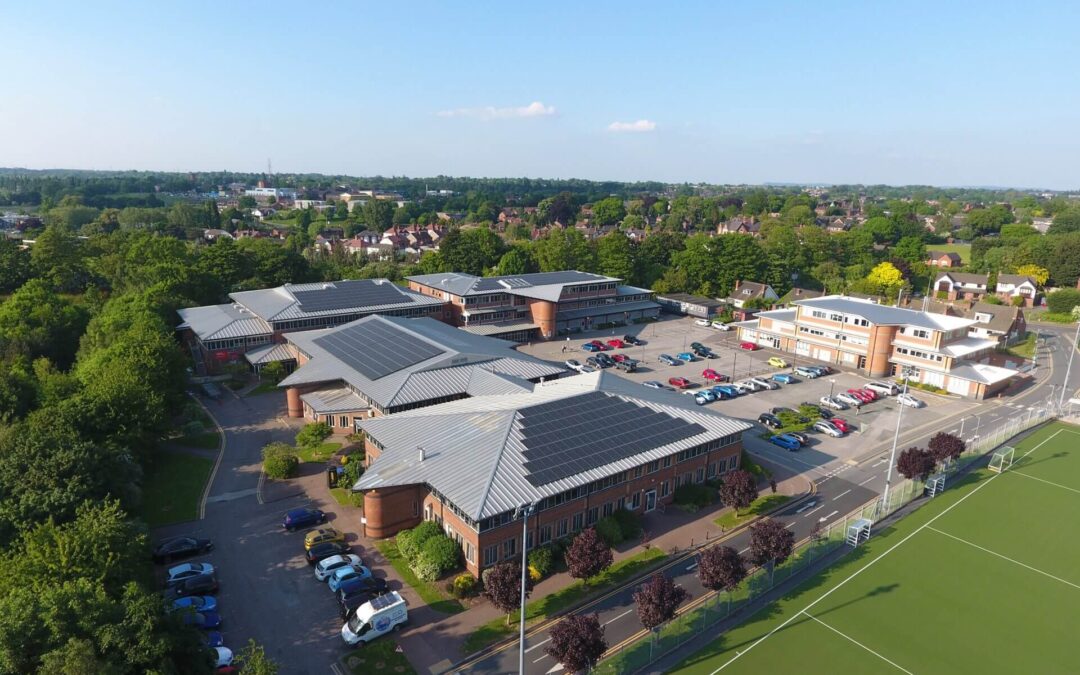

The University of Chester

Chester University

The University of Chester have made a huge commitment to investing in solar PV technology across their estate of campus buildings over the last few years. Genfit have played a key role in delivering on this commitment and continue to work closely with the University to continue with further installations including student accommodation and EV charging stations.

Parkgate Road Campus

Four campus buildings have a Solar PV installation providing electrical power to the Main Campus, Parkgate Road, Chester.

Queens Park Campus

The University of Chester, Queens Park Campus is situated in Handbridge beside the River Dee. Genfit installed 109 kWp of solar power which will provide electricity to significantly reduce their energy bills and carbon footprint for many years to come.

Genfit only install SolarEdge Technologies Inc. DC optimisation inverters which offer superior level’s of safety, monitoring and allows for the complex configuration of multiple roof spaces.

K2 Systems GmbH manufactured equipment is a great example of a standing seam solar panel mounting system.

Brinno Timelapse Cameras used throughout.

Make Enquiry

Please fill in your details below and we will be in touch as soon as possible

Name

E-Mail Address

Phonenumber

Consumption Profile

Address

Town

Postcode

Consumption

How Soon Do You Want Your Installation?

Enquiry

Agreement Agreement By checking this box, I agree to allow PV Fit Ltd t/a Genfit to use the given information only for the purpose of complying with their terms and Privacy Policy

14 + 7 =

Get Quote

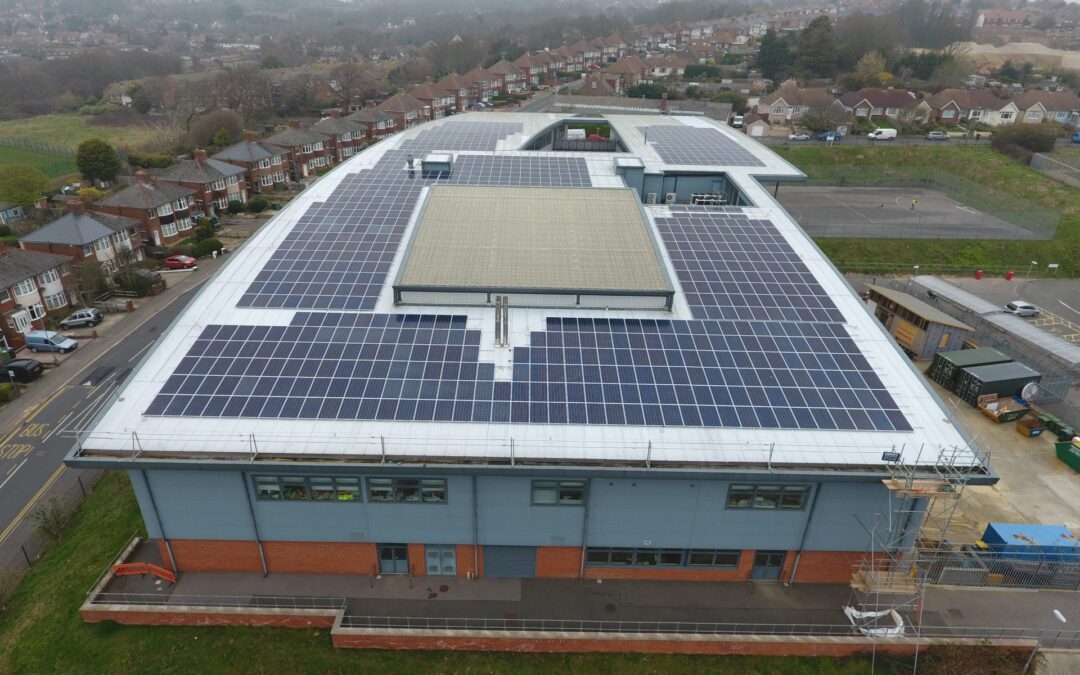

ESC College – Ore Valley Campus

ESC College Ore Valley Campus Solar PV Installation

Genfit worked in partnership with Brighton Energy Co-op and Energise Sussex to successfully deliver this community energy project in March 2019. Ore Valley Campus in Hastings is a recently constructed 7,000 square metre site, designed to provide realistic working environments for its students.

Genfit adopt a collaborative approach to such partnerships and are currently developing community solar projects with Brighton and Hove City Council, the University of Brighton, Shorham Port development and the innovative Solar for Schools programme.

How can Genfit help? We work with community groups across the UK to identify sites, assess feasibility, provide detailed technical specifications and produce energy & cash flow predictions. We can ensure a quick and easy project delivery. Contact the team on 0344 567 9032 to find out more.

Technology

Solar Panel

BYD 275 P6C-30-4BB-156.75P x 909

Warranty

12 years for product

25 years linear Warranty

Efficiency

Average cell efficiency up to 18.3%

Dimensions

1645mm x 998mm x 35mm

Weight

18.6 kg

Inverter

7 x Solaredge 27.6K

Optimiser

462 x Solaredge P600 Optimisers

Make Enquiry

Please fill in your details below and we will be in touch as soon as possible

Name

E-Mail Address

Phonenumber

Consumption Profile

Address

Town

Postcode

Consumption

How Soon Do You Want Your Installation?

Enquiry

Agreement Agreement By checking this box, I agree to allow PV Fit Ltd t/a Genfit to use the given information only for the purpose of complying with their terms and Privacy Policy

7 + 13 =

Get Quote

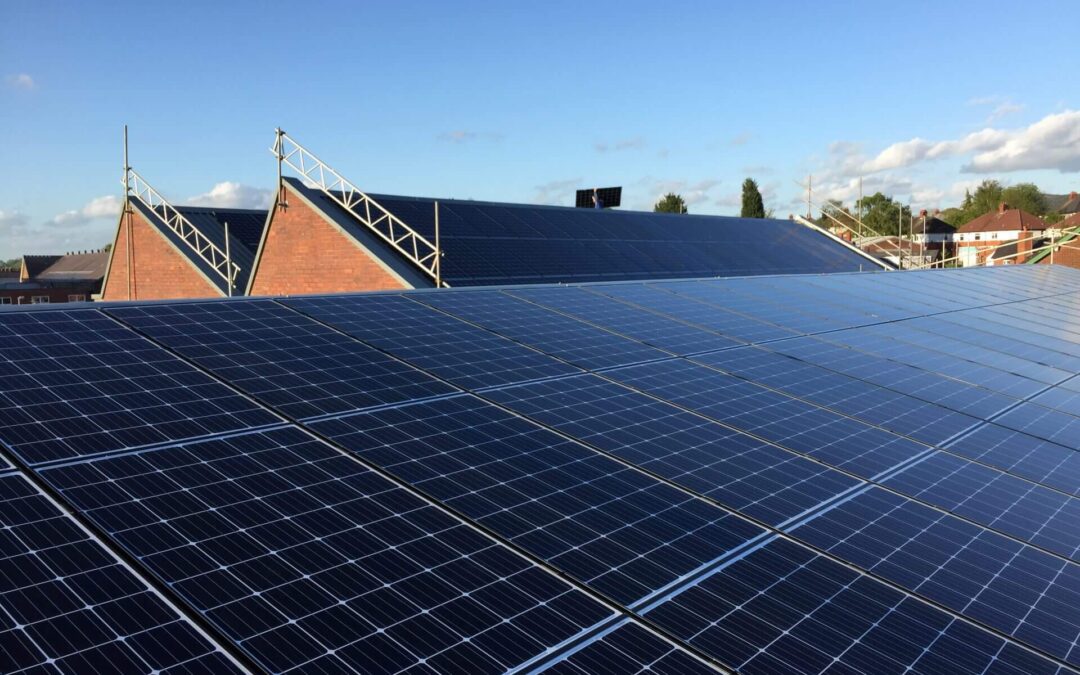

HMK Automation – 50kWp Solar Installation

In May 2015 we installed a 50kWp Solar PV System for HMK at Kappa House.

“HMK Automation & Drives is the largest Integrated Drive Systems provider in the UK. We offer a diverse range of general and high performance drives, mechanical components and solutions.” – HMK’s Website

HMK are a UK based company with their headquarters in Congleton, visit www.hmkdirect.co.uk to find out more.

Customer Feedback

We asked HMK’s Operations Manager (Steve Hardy) a selection of questions to provide additional background on HMK’s goals and feedback regarding the Solar PV system and its installation.

What factors were involved in your decision to install Solar?

The ability to produce clean energy from a sustainable source coupled with the financial ROI. The installation of the solar system will form a key factor in HMK’s application to obtain ISO14001 (Environmental Management System).

How did you find the service you received from Genfit?

GenFIT proved to be a knowledgeable partner who undertook the work in a professional manner.

Would you recommend a solar project to other businesses, if so why?

Yes, solar power generation offers a clean source of power generation that, once installed, offers superb benefits for the business – both in terms of onsite generated power and the financial payback.

How does it feel to see the project completed?

Excellent, it is very satisfying see the solar system operating at full capacity.

What did you think of the speed of installation (from planning to installation)?

The whole service was efficient from the planning phase through to installation and ultimately commissioning and testing

Solar Energy for Business

Renewable energy projects including Solar PV, Biomass and Wind power can act to serve the goals of many businesses.

The Feed in Tariff
The RHI
Government Support on Investment

For more information for your own business renewable energy projects please contact us on 0344 567 9032.

Technology

Solar Panel

JA Solar 285W x 1533

Inverter

3 x Solaredge SE17000
